Tactical Solar Tents

Tents & Shelters with TacticalSolar® Panels


Tactical ShelterVarious DC & AC output voltages are available.
  • Units are integrated into self-contained enclosures providing easy deployment and equipment protection.
  • Quick setup in as little as 2-minutes.
  • Systems can also use DC from military or emergency vehicles as input and optionally AC from any AC source.

The new Solar Power Shelters offer up to 1440 watts of solar power for each 10' x 20' shelter section. This solar covering also serves to further insulate the shelter, thereby reducing power required for heating/cooling.


Tactical Shelter Modular Easily Deployed Shelters

Utilis USA has partnered with Energy Technologies, Inc. to provide the total Tactical Shelter Systems solution.

Utilis USA provides a variety of military shelters from an innovative system of deployment. The ease and speed with which the shelter systems deploy saves soldier time and simplifies training.

Energy Technologies, Inc. provides power generation, power inverters, backup power, and a workstation for office and computing solutions. Power generation includes solar power, wind power, and gas and diesel generators. Environmental Control Units to keep shelters or equipment enclosures within the desired temperature & humidity range. Tactical Fuel Cell® Power Plants to provide several hours to days of continuous operation. ETI offers the most complete line of deployable field office equipment with the Tactical Field Office™.

Shelter Features:
  • Erected in less than 5 minutes
  • Range from 41 sq ft – 650 sq ft
  • External frame incorporates a unique folding-design.
  • Rugged aluminum alloy frame
  • Traditional A-frame shape
  • Minimizes vulnerabilities and maintenance requirements.
  • Outer Fabric Heavyweight protective PVC material
  • Meets performance requirements for MIL-PRF 44103
  • Strength, weather resistance and durability in any environment.
  • Internal liner stays integral to the external fabric
  • Integrated electrical outlets and air conditioning plenum pre-installed.
  • Packaged into three carry bags
  • Reduce the transportation requirements by one-third
  • The capability to complex to one another and to other shelters

Click here for more info...

The Solar Shade Protects Containers from heat, reducing loads on ECU systems.Solar Shading for ISO Shelters/Containers

Various DC & AC output voltages are available.

  • Solar Panels are integrated into container-structures offering several advantages.
  • Solar power production: 1440 watts of solar power can be generated by each for each flexible 10' x 20' section.
  • Shading from the solar fly can reduce heat in the container by up to 25% and reduce power consumption by ECU systems
  • Systems can also use DC from military or emergency vehicles as input and optionally AC from any AC source. This solar covering also serves to further insulate the container from weather.

Click here for more info...

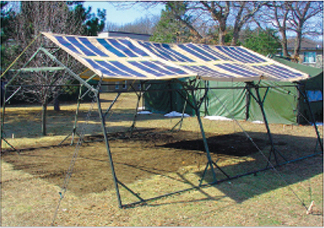

TacticalSolar TentEnergy Technologies, Inc. (ETI)'s Tactical Solar Tents provide from 190 Watts to 3 Kilowatts of solar power to recharge a bank of batteries, and also provide shade from the sun to reduce solar heat load up to 80-90%, and protection from rain. These tents and shelters fit over the MGPTS, TEMPTER, ISO, Airbeam and other standard field shelters or drape over other structures or vehicles, or can be simply stretched out on the ground. These shelters incorporate

Solid State, Thin-Film, Solar Cells, providing an excellent choice for applications that require lightweight, flexible, durable, silent power.

Applications:Recharge a bank of batteries to provide power for lighting, ventelation, field communication radios, satellite phones, laptops, GPS units, etc.

Product Integration: Combined with ETI's line of Solar Charging Systems, these tents can provide 110 or 120 VAC for extended periods.

TacticalSolar® Tents & Shelters
  Operating Voltage
(V)
Operating Current
(Amps)
Rated Power Folded Dimensions
in / (mm)
Unfolded Dimensions
in (mm)

ETI0021-0052 15.4 12 190 Watts 13 x 19
(330.2x482.6)
96 x 114
(2438.4 x 2895.6)
Request Info
0052 Tacticalsolar tent
  Clear Span Dimensions
ft / (m)
Staked Dimensions
ft / (m)

ETI0021-0054 15.4 or 30.8 - 2 Kilowatts 22 x 20
(6.7 x 6.1)
38 x 56
(11.6 x 17.1)
Request Info
0054 Tacticalsolar tent
ETI0021-0055 15.4 or 30.8 - 3 Killowatts 22 x 20
(6.7 x 6.1)
38 x 76
(22 x 20
6.7 x 6.1)
Request Info
0055 Tacticalsolar Tent
* Operating Voltage and Operating Current at AM 1.5. Power performance may vary +/- 10% due to temperature variation, spectral variation & related effects.

Solar Field Tents & Shelters

Benefits
  • Helps meet the growing demand for rapid-response portable and remote power for weapons and communications systems.
  • It supports rapid deployment and remote locations with quick solar electric power generation.
  • Silent Operation
  • No Heat Signature
  • Reduces risk and cost of logistical support
  • Reduces reliance on noisy generators, bulky fuel, and extra batteries
Features
  • Intigrates lightweight, rugged TacticalSolar® flexible solar panels directly with fabric.
  • Field Shelters designed for easy & quick set-up.
  • Features the same rugged PVC-coated tan fabric standard on other field shelters.
  • Non-reflective solar panels with matte finish.
  • Available in various fabrics and colors
Expected Lifetime

These products are expected to last as long as tents without the integrated solar technology.
